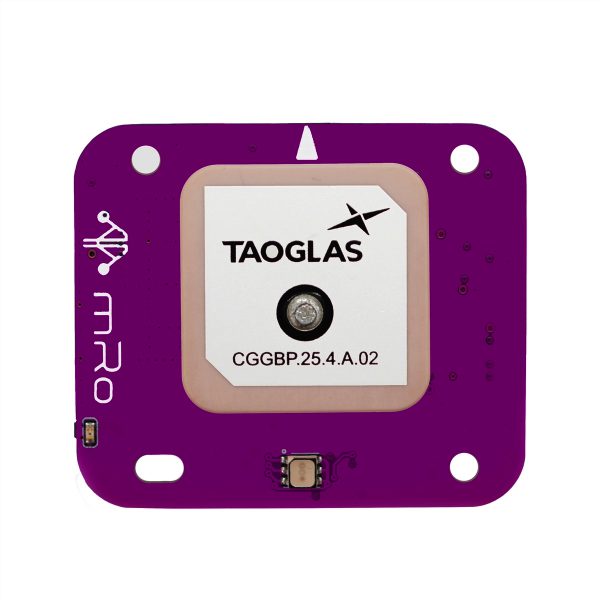

GPS Classic M8N – IST8308
Background
Features the latest Taoglass Antenna tuned for GPS + GLONASS, which provides a higher gain compared to any of its predecessors (from 1.5dBi to 5dBi), as well as the IST8308 compass by iSentek, which is based on the legendary HMC5983 technology and licensed by Honeywell. In addition, the IST8308 is temperature compensated and has a micro USB port which enables you to access all u-Blox features via u-Center and power the device.
Extra Info: HMC5983 and the IST8308 are pin-compatible (either one is placed on the board, but not both). There is a third option, QMC5883L, that we might support later.
Specifications
Section titled “Specifications”| Specifications | mRo GPS u-Blox Neo-M8N – IST8308 |
|---|---|
| Ground Plane | 40mm x 47mm |
| Constellations | USA (GPS), Russia(GLONASS), Europe (Galileo) & China (BeiDou). |
| Compatibility | IST8308 supports: PX4 and Ardupilot |
| Compass | IST8308 |
| Barometer | No |
| RTK ready | No |
| USB Port | Yes |
| CAN ready | No |
| Minimum and Maximum Operating Temperature | -20 ~ 80 °C |
| LED | Yes |
| Dimensions | 40mm x 47mm x 9.9mm |
| Weight | 16.60 grams (.586 oz) |
| Mounting Holes | 2.5mm and 5.4mm |
| Case | Optional |
| Connectors | 6-Pins JST-GH Auxiliary Port I2C |
| Includes | 1x 6-Pins JST-GH cable |
| Typical Platforms | Multirotor Rover Fixed-Wing Boats VTOL Automatic Tractors Others |
| Other Features | RGB LED driver (NCP5623) integrated. PPS pad for easy access. On-board safety switch. |
Firmware
Section titled “Firmware”The GPS u-Blox Neo-M8N – IST8310 is compatible with the following firmware:
ArduPilot
- ArduCopter 4.x
- ArduPlane 4.x
- ArduRover 4.x
PX4
- V1.8 (and further versions)
Normal Usage Guide
Section titled “Normal Usage Guide”All connectors follow the Dronecode connector standard. Unless noted otherwise, all connectors are JST-GH.
Pinouts
Section titled “Pinouts”I²C Port
Section titled “I²C Port”| Pin | Color | Signal | TTL/Voltage Level |
|---|---|---|---|
| 1 | red | VCC | 5V |
| 2 | black | I2C_SCL (pull-up on autopilot) | 3V3 |
| 3 | black | I2C_SDA (pull-up on autopilot) | 3V3 |
| 4 | black | GND | N/A |

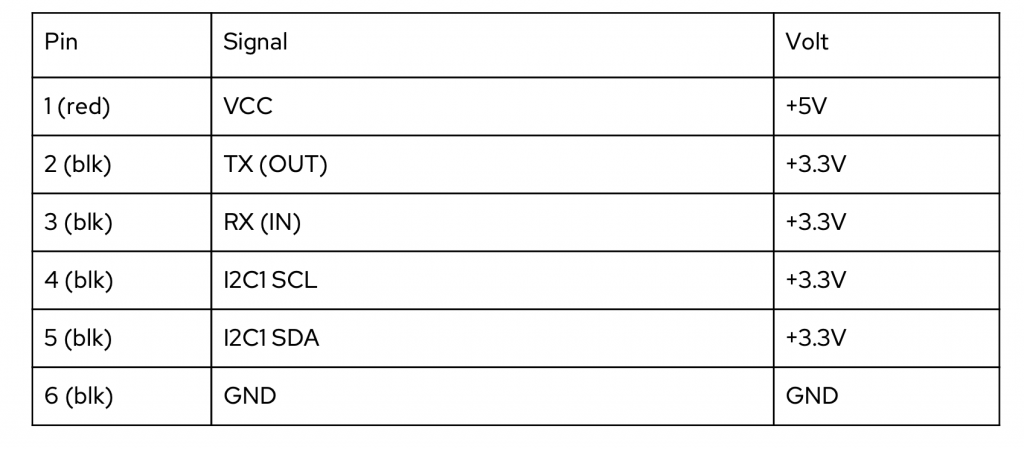

GPS Port
Section titled “GPS Port”| Pin | Color | Signal | TTL/Voltage Level |
|---|---|---|---|
| 1 | red | VCC | 5V |
| 2 | black | RX (data in) | 3V3 |
| 3 | black | TX (data out) | 3V3 |
| 4 | black | I2C_SCL | 3V3 |
| 5 | black | I2C_SDA | 3V3 |
| 6 | black | GND | N/A |
Wiring
Section titled “Wiring”| Pilot | GNSS |
|---|---|
| VCC | VCC |
| TX | RX |
| RX | TX |
| I2C_SCL | I2C_SCL |
| I2C_SDA | I2C_SDA |
| GND | GND |
